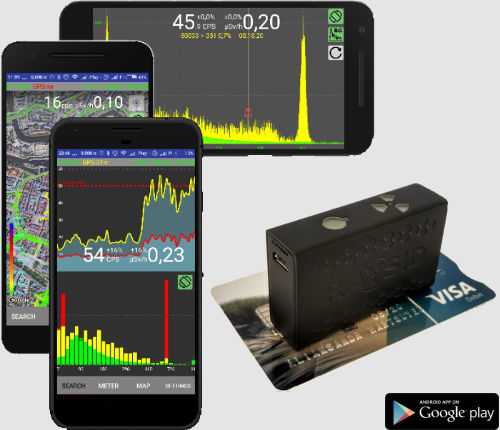

Spectroscopic Radiation Detector RAYSID
- fast and very sensitive to gamma and x-rays
- gamma spectrometry with no wires anywhere
- radioactivity mapping and logging
Small, wearable, wireless, autonomous.. read specification

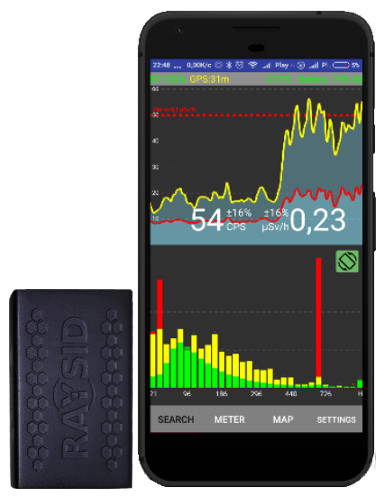

Fast & Sensitive
5cm³ CsI/Tl scintillation crystal allows to register 15-25 gamma rays per second in a normal environment (~0,10µSv/h).
Dose rate value is energy-compensated and sensitivity-compensated. There is no big overestimation for Am-241 or underestimation for Co-60.
Raysid can operate without smartphone with preset alarm levels (monitoring/spectrum collection/log recording) up to 10days on one charge.

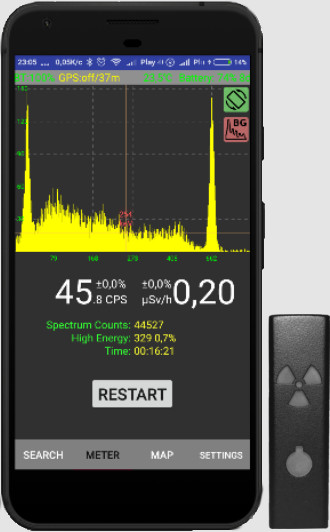

Mobile Gamma Spectrometry
Raysid sensor is temperature-compensated. There is no noticeable temperature drift.
Some use cases:
- spectrum analysis outside/inside a laboratory/home
- food checking for non-natural izotopes
- comparing current spectrum with background

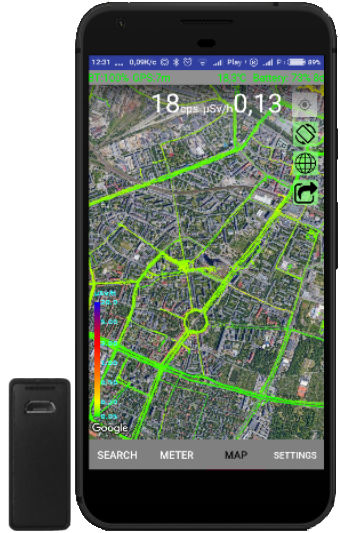

Tracking & Radiation Map
With Raysid you can build your own radioactivity map and/or save your further route on the global Raysid Map.
There is no need in Internet connection for mapping. The Internet is required only for the global map.
Raysid App stores your map locally. An average smartphone can store more than million km of routes.
Raysid gamma spectrometer is comfortable for everyday wearing. Its size and weight are similar to a zippo lighter. A long lasting battery (up to 10 days) is enough for long exploration trips. Wireless communication allows to stay in a safe distance from a radioactivity source. Raysid app works on smartphones/tablets with Android 5.0 or higher supporting Bluetooth 4.0 or higher.
Technical Specification
| Gamma detector | 5cm³ CsI/Tl |
|---|---|
| Energy range | 25keV-3MeV |
| Spectrum channels | 200/600/1800 |
| Sensitivity | 15-25cps/0,10µSv/h |
| Maximum throughput | >25000 cps |
| Maximum dose rate | 1000 μSv/h |
| Alarm indication | light, sound, vibration |
| Battery | Li-Ion 1250mAh |
| Fully charged battery life | up to 10 days |
| Charging time | 5-6 hours |
| Temperature range | -10°C..40°C (dose rate) 5°C..40°C (spectrum) |
| Humidity | up to 90% RH |
| Size | 58mm x 35mm x 16mm |
| Weight | 65g |
| Software interface | Android >=5.0 Bluetooth >=4.0 |
enclosure size of series 2304 and earlier: 57x35x16mm
